B16A2 IM Hose missing

http://i254.photobucket.com/albums/h...6062009042.jpg

was wondering what is actually supposed to be here? can someone check their b16a2?

Thanks guys. I'm idling at 1500. That isn't normal is it?

pretty sure that small rubber hose goes back to your charcoal canister.
Feel under to the charcoal canister , and make sure each rubber pipe off the top of the canister is connected

hey benji are B16A's that much different??

i dont have that cross section on mine nor that solenoid that the red ring is next to.... :confused:

LOL what do you mean b16a's? do u have a b16a1 or something? and why udner the charcoal canister? is there supposed to be a pipe from underneath the canister? and yes each pipe on top of the canister is connected. Hmmmm maybe it might be in the service manual. Well benn theres the pipe that goes from right next to the solenoid that goes into the canister... maybe its in the wrong place? but then where would the other open hole go.

In the US they said the hose might be the cruise control thats missing but em1s in aus dont have cruise control ._.

more detail in pix please its hard to see with that picture...

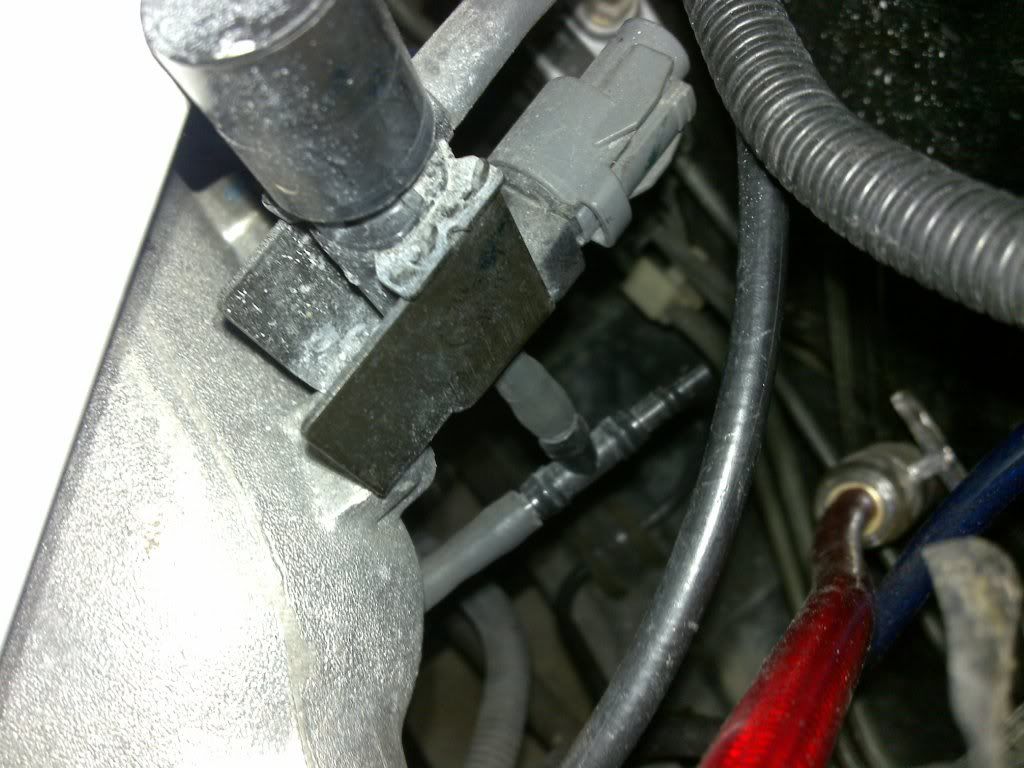

here ya go, the hose that goes from the solenoid (purge I think its called) goes to the black cylinder I think you called it the charcoal canister.

http://i254.photobucket.com/albums/h...6062009039.jpg

its prob a teeoff to the obd2 crap in the fuel tank,check if it runs under the car with the fuel lines,could possibly go into the firewall down low.....

block it off and see if it idles normally again?

hmm blocked it off but only lowered the RPM sligtly.. maybe I should clean the IACV, is that the thing with that cylinder attached to it behind the IM?

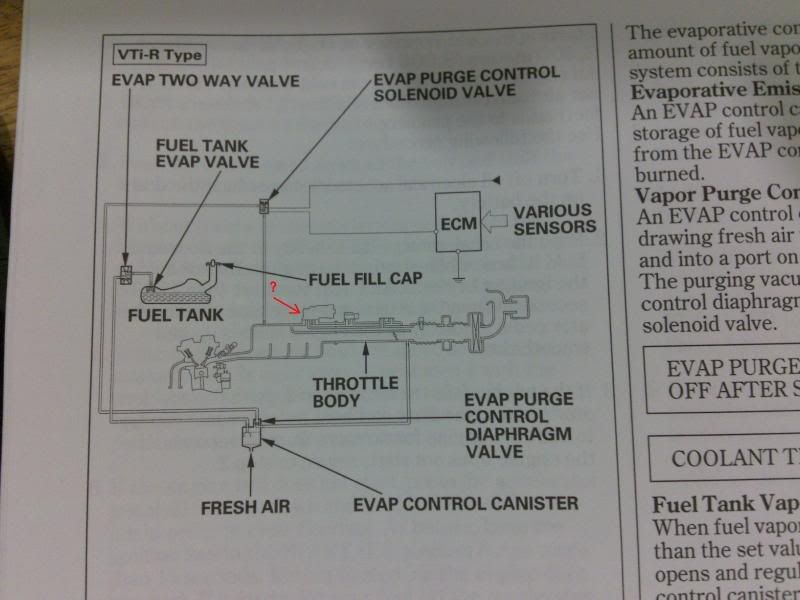

I found a diagram inside my maintenance book or wateva it is and I think I found where it's supposed to but can't identify the component in the picture here it is:

http://i254.photobucket.com/albums/h...1062009046.jpg

anyone know what it is?

thats the IACV dude, got nothing to do with the vac hoses
