Odyssey RB3 / MY13 (NAV) stereo wiring

better pictures of the factory unit (now removed)

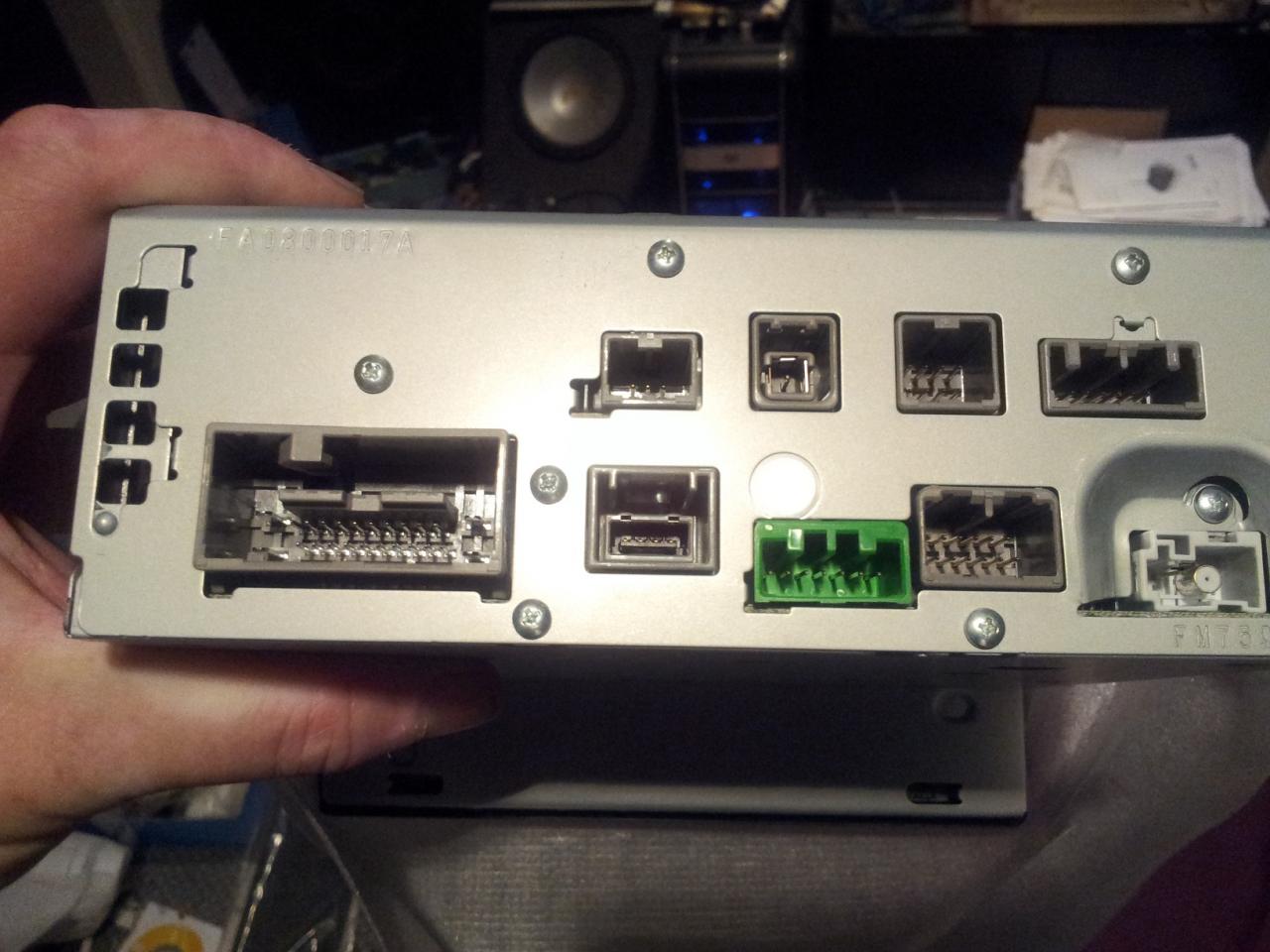

The rear panel showing the connectors as described previously
Attachment 24387

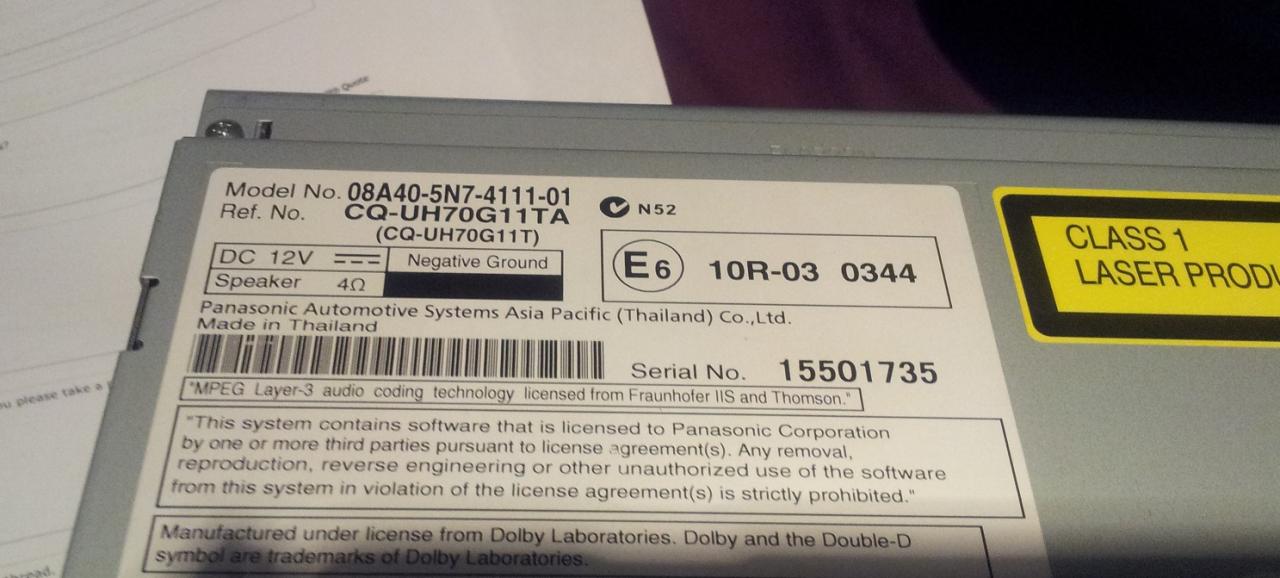

and the model number of the unit
Attachment 24388

Quote:

---

Originally Posted by SQXPRT

The MY13 now comes with DVD/NAV/Bluetooth as standard, and it's a bit different from previous years' models.

Attachment 23615
There's quite a bit going on in the back of here, so I'll post updates as I discover the mysteries within.

The main stereo loom (Connector "A"), whilst similar to previous models, is slightly different from anything I could find on the net:

Pin Colour Function
A1. Empty
A2. Empty
A3. Empty
A4. Green. Secuity System
A5. Purple. Steering Wheel Control Common
A6. Brown. Speaker (-) Right Rear
A7. Yellow. Speaker (+) Right Rear
A8. Empty
A9. Empty
A10. Pink. Speaker (-) Left Rear
A11. Blue. Speaker (+) Left Rear
A12. Brown. Ground

A13. Grey. Illumination
A14. Purple. Accessory
A15. Yellow. Vehicle Speed (1 Pulse = approx. 400m)
A16. Pink. Steering Wheel Control (stereo) input - see table below for resistances
A17. Empty
A18. Green. Speaker (-) Right Front (Mid and Tweeter in parallel)
A19. Red. Speaker (+) Right Front (Mid and Tweeter in parallel)
A20. Empty
A21. Empty
A22. Orange. Speaker (-) Left Front (Mid and Tweeter in parallel)
A23. White. Speaker (+) Left Front (Mid and Tweeter in parallel)
A24. Yellow. Backup Power

This drawing of the plug connector came from somewhere else on here, but the numbers are back-to-front from the Honda service manuals:
Attachment 23635

---

Hi;
I have 2nd hand RB3 and recently I would like to replace it with a china DVD and GPS system, however I can't find the SW1 SW2 wires as my wire harness are not the same as in this forum (I am pretty sure it is original but no luck to connect it to the steering control.

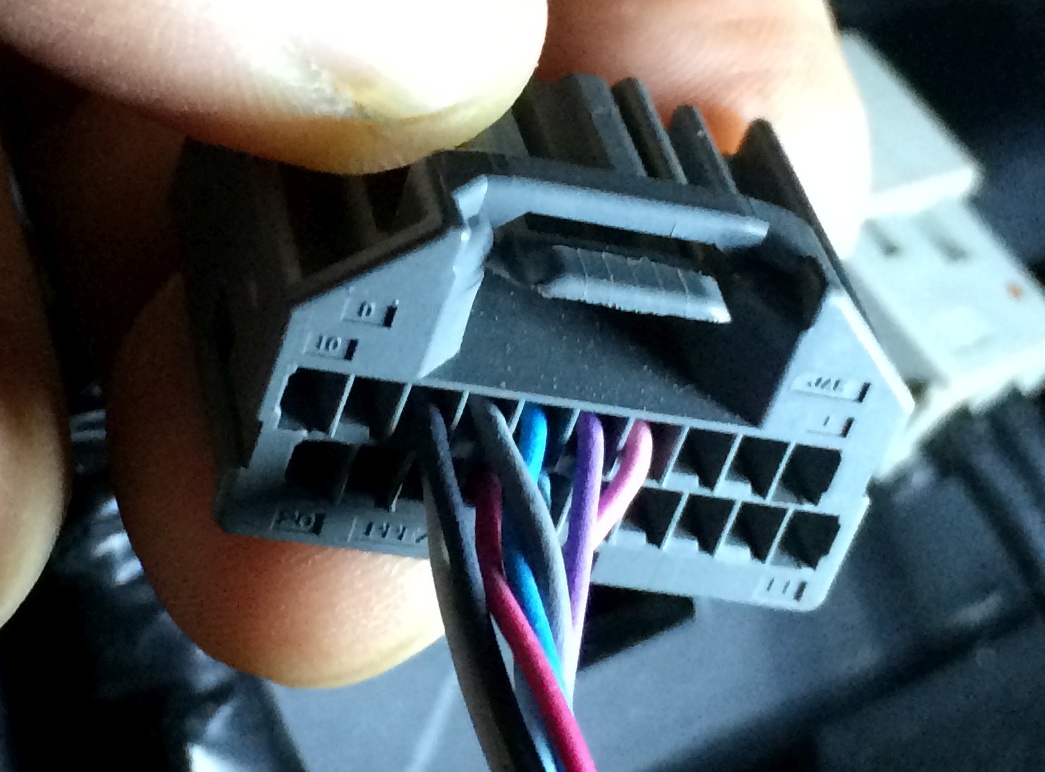

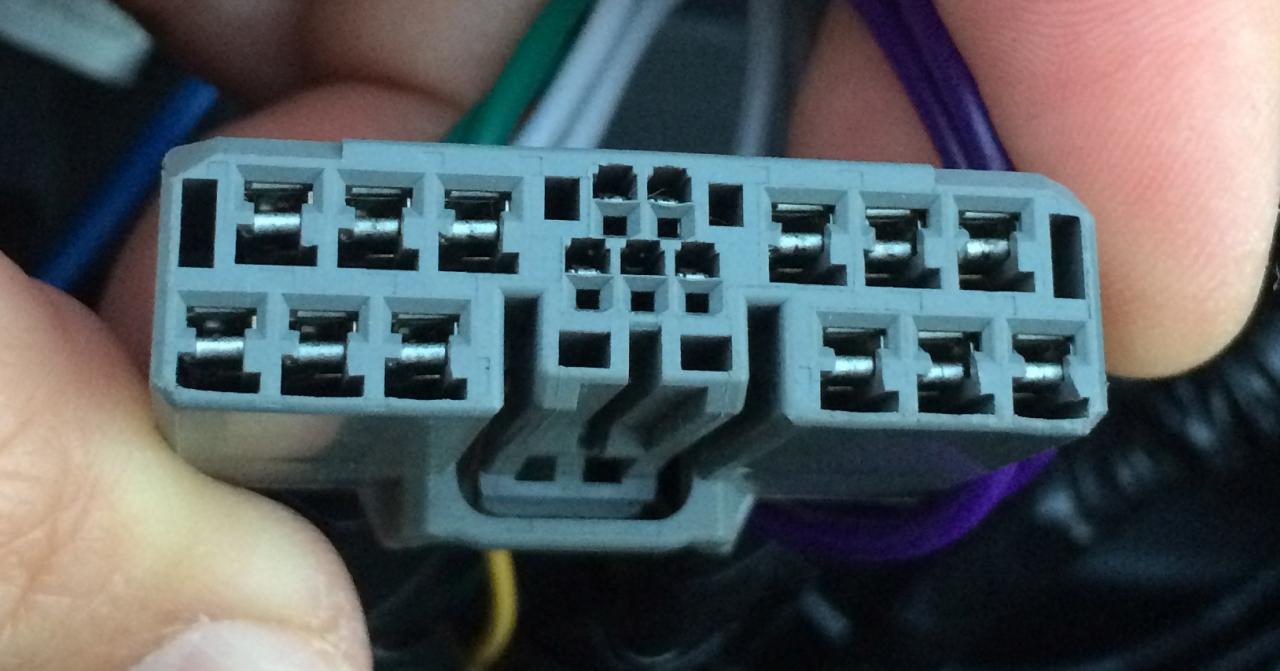

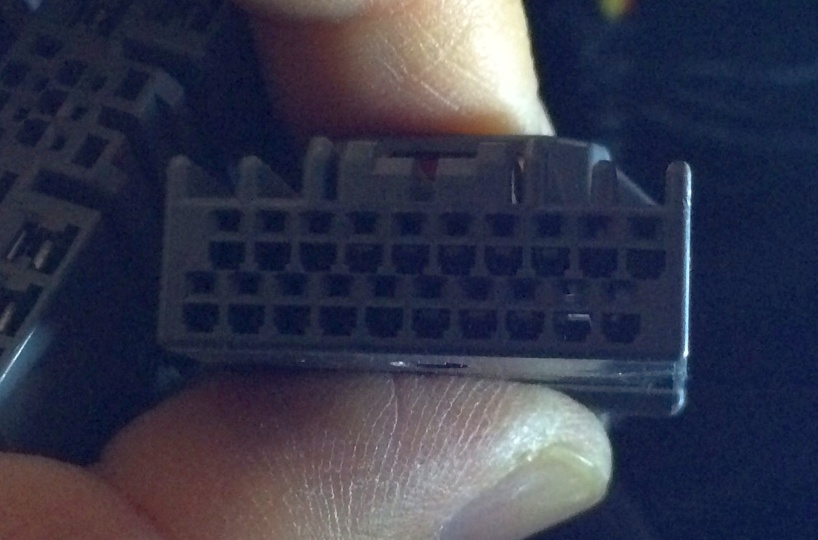

Anyone know the how to find Sw1 and Sw2 from these 2 sockets? Thank you in advance.

Hi All;
I have 2nd hand RB3 and recently I would like to replace it with a china DVD and GPS system, however I can't find the SW1 SW2 wires as my wire harness are not the same as in this forum (I am pretty sure it is original but no luck to connect it to the steering control.
Anyone know the how to find Sw1 and Sw2 from these 2 socketAttachment 28249Attachment 28250Attachment 28251s? Thank you in advance.

I bought a 2013 odyssey stereo from a wreaker and trying to fix in to a 2010 Honda odyssey lux car. The main connector worked with no issues and stereo got powered and could play audio with no issues. But the antenna was deferent..do you know how to get the 2010 odyssey antenna connected to 2013 antenna ?


The unit is the same one you posted the diagrams. I could not find how to install the camera. My 2010 Honda odussey came with the main connector antenna and the steering wheel control connector. As its 2010 odyssey did not have the other wire connectors on it.

Are you able to help me please..? I badly need the camera working because this car is too big for my wife :(.
