yes there is paint behind it, there is paint behind all of it. and i wouldnt wait a week when my tuner is in town from the 16th till the 23rd, need it tuned in that time :D plus cant drive my sisters car around for ever. u will get a better idea on the paint when all the masking shit is off
Yeah i know i've sprayed stuff before.
Did you spray the BMC and the strut tops or did you mask them up??
And what was up with your washer bottle?
just the wired and shit, i couldnt get them off without breaking all the tags so i just stopped before i did. sprayed the strut tops, but its getting new suspension soonand the brake master cylinder will still be black... hopefully lolQuote:
Originally Posted by JasonGilholme
either way people should be more focused on the engine ;) but that paint job is still good, the pearl isnt as strong as the outside but its there. would of prefered more pearl but o well. main focus now is the engine
meh. The judges will look at all aspects of the car when its at a show.
haha i know but its not exactly an award winning car. u keep judging something u havnt seen, just wait till the end result.
LOL its an award winning DIY JOB !!! hahahah im facinated to what you did :)
the guy who did the spray was a spray painter for over a decade for volvo trucks, still a DIY job though yes. all the prep was done by me though
lol @ "my tuner" would you hook me up one day
my tuner as in the one tuning the car. its correct grammer, so whats ur point. man whats with all the useless posts, go back to spam thread if u got nothing decent to say (yes i believe having to repeat why i didnt take out all the stuff in the engine bay to spray is classed as a useless post).
Dyno Dave would also be correct grammer
and dont get cut up because ive made 4 posts in your thread and the last one was a joke
lol no im just tired and run down and need a break i dont take well to jokes when im run down, but in 5 minutes im offically on holidays woot been a busy week at work but its over now :) o well more updates to come, and yes dyno daves tuning it

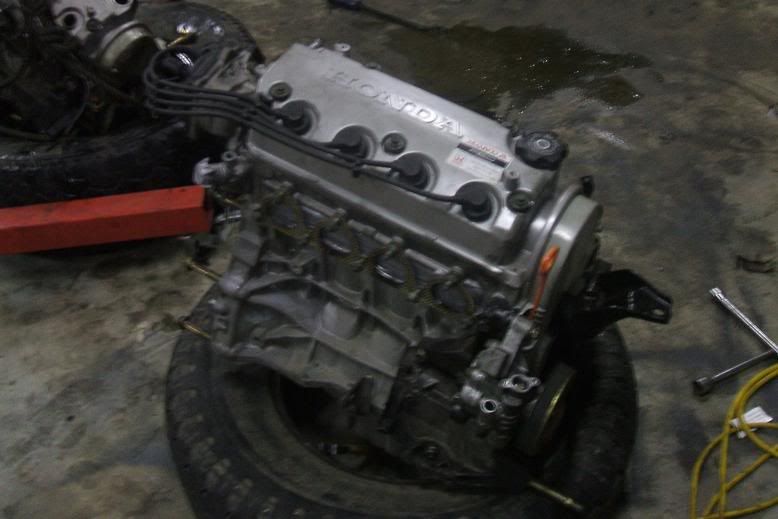

well the new engine is now practically fully built to go in, just need to put new clutch in then bolt gearbox up and get it in the engine bay, then the fun part starts.

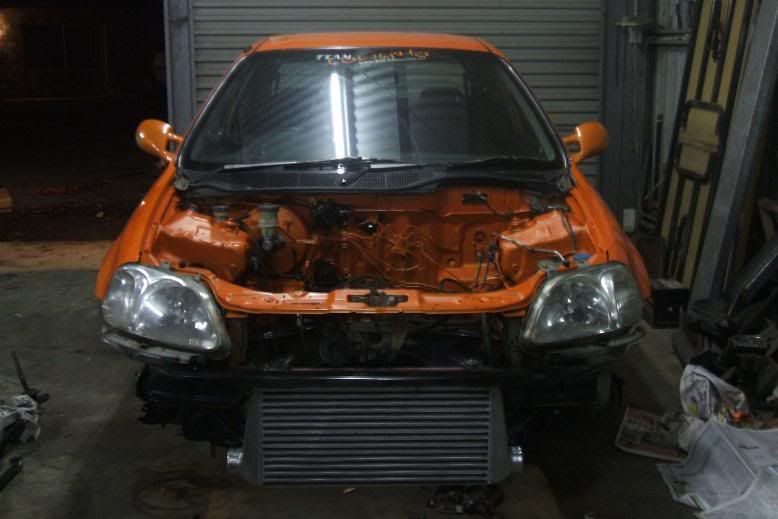

picked up my new turbo as well and also bought a new front mount (pictured), same size just not so dinted and more shiny lol
http://i27.photobucket.com/albums/c1...6/day4-002.jpg
thght u were putting a k-series motor in, which ones goin in anyways?
awsome mate you will be surprised how much better the sohc vtec flow compared to the y4
nice nice...
i love this.. i am gonna take pictures and show my progress of my car too
DIY BAKYAURD YO
think pic says it all :D
http://i27.photobucket.com/albums/c1...N46/day6-2.jpg
http://i27.photobucket.com/albums/c1...N46/day6-1.jpg
http://i27.photobucket.com/albums/c1...N46/day6-3.jpg
http://i27.photobucket.com/albums/c1...N46/day6-4.jpg
thanks for the kinda words.... DIY ftw
when you say the engine is fully built, what's done to it?
haha the engine kinda goes like this...
D16Y8 Block
D16Y8 Head
D16Y4 Gearbox
D16Y4 Sump
the rest is a mix of the two...
then the heavy duty clutch and injectors
lol k. so just stock shoc vtec motor.
yep, ran out of money to do internals. but its ok until im hitting 250hp atw im not even ganna think of internals. (call me risky but aye there are plenty out there like that that have been running for years)
yep mine is SOLID proof of that d15b7, running 12psi on microtec lt8 ( PIECE OF JUNK!) treated well, warmed up and down, run on the best fuel 98bp ulitimate, and the best oil, mobil 1 5w50. been running for 3 years, no problems yet and still perfect compression
projects coming out nice aza... can't wait till its done! can't wait to see final figures too!!
You didn't tape up the BMC very well. lol I thought you said it was still gonna be black. The whole thing is orange.
Hope to see some hires pics soon tho.
FMIC + EK = horny Kraiye ;)
PM me if you blow your block, i got a stock Y8 bottom end left over from mini-me.
BTW, how many psi u gonna run on ur stock internals?
Well he said he wants about 10 PSI for a safe reliable daily driver (said so earlier in this thread)
I think 6 or 7 will be safe tho.
i'd be going for a dual stage controller if it was me. 10 psi daily may be 'lil risky when you dont always need it
thats what i'd do too. :thumbsup:
just because the wastegate/boost controller is set at 10psi doesnt mean he is going to be hitting 10psi every day
depends on the weight of his foot ;)
i know i'd be in trouble!
as just said it will be on 10-12 psi but will not be hitting that much EVERY time i drive, it is very rare i even hit boost when driving, let alone full boost. with a T3 turbo u r able to drive the care very safely
true dat
look forward to the next set of pics
getting close man and lookin good :thumbsup:

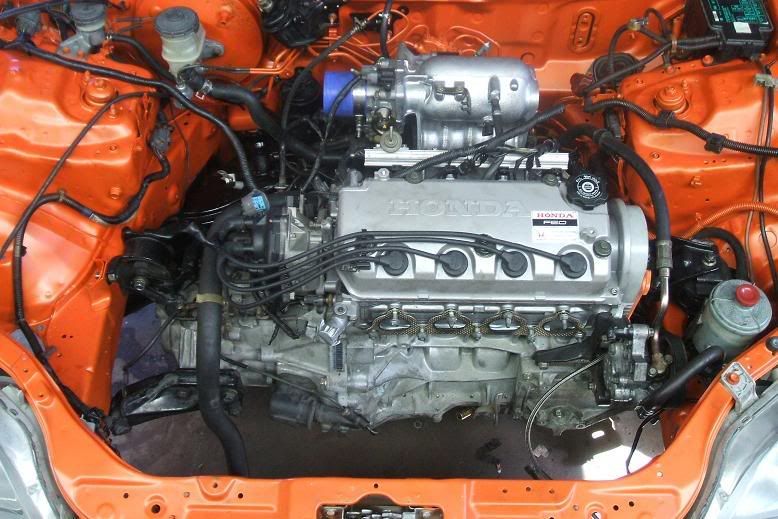

more shit connected...
http://i27.photobucket.com/albums/c1...N46/day7-1.jpg
not sure if you've mentioned it earlier... but you doing a wire tuck while doing this? SOHC's look awesome tucked... place makes soooooo much more space to work!!
and blue rocker cover would set off real nice against the orange!
rocket cover is being done, but not blue. haha need to get on to trav about that he is doing it atm. all i know is its completely shaved and has a fancy design. also it will be tucked after its running again. i want it running first
a) its a rocker cover (not rocket)
b) black BMC ftw!
c) wire tucks are cool
:thumbsup:
new a) should be, a car that runs is cool.....
and thats all the aim is atm, everthing else can be done after, holdur horses mate, prioritys...
yeah man i think a few blue bits would look really good and a blue valve cover would be different blue wrinkle finish would be d best thoe
any word on the cover that trav has wasnt it goin to be a red finish
blue > red.
Red is overdone.
red hahaha NO, its meant to be like camoflarge with orange and copper with white outline i think???? either way, plain blue wouldnt be that good, i want something thats different
lol if travs is doin it its sure to be different
i agree about plain blue being a lil bland in a stock bay but with all that sweet pearly orange around to contrast it, it would stand out like dogs balls! - specially after a tuck
either way i fancy colour matched lid from trav is gonna look sweet as
and btw jason, it IS a rocket cover when it sits on a boosted D :p
more shits, should be getting help tommorow to try to get everything connected, i would say its about 70% connected now...
http://i27.photobucket.com/albums/c1...N46/day8-1.jpg
didnt do too much today, i need help to connect the last few things, there is fock all left to connect, someone please offer there assistance who knows how these things go or someone with a D16Y8 offer there car for me too look at lol.
o well new guages mounted.
http://i27.photobucket.com/albums/c1.../guages002.jpg
ur cluster dsnt have RPM meter?? was it a auto b4??
^ nah his is the cxi, doesnt come with a rev meter
did abit more, still need help if any one is offering, need someone who knows there shits...
least u can tell its a turbo car now...
http://i27.photobucket.com/albums/c1...N46/day9-2.jpg
What do you need assistance with aza? What parts etc?
no parts.... got all the parts, just with a few of the connections not 100% sure how they go. its ok i got a few guys who should be helping me out. should be running within a week and tuned (if all goes to plan). then yes cory i will take u for a spin
better be done when i get up there next weekend, and my sss will win again haha
http://i27.photobucket.com/albums/c1...46/day10-1.jpg
http://i27.photobucket.com/albums/c1...46/day10-2.jpg
http://i27.photobucket.com/albums/c1...46/day10-3.jpg
Things Left:
Exhuast
Turbo Cooling
POD Filter
ECU
Put everything back together...
THEN TUNE
Very cool man! cant wait to see it in action
hey man what dizzy did u end up using?
if u had to go a Y8 one, where from/how much?
i taught u will having a bling rocker cover? =\
Nice work, been really enjoying reading through your thread. Really nice car man, cant wait to come up to autosalon and see it.
if u read u will know that atm i just want the car going, ha i do have a bling rocket cover for it but its not finished...Quote:
Originally Posted by 040501912
Quote:
Originally Posted by kraiye
using a Y8 one, from hondarec down the coast, as for how much... u dont wanna no, lets just sa i was desperate and its the only one i could find in a day
Might wanna think about heat management and air flow through the front end of the car otherwise you might run into some issues.
its using the same cooling as last setup and that never got hot, no reason why this setup should either.
...righto.
well explain what u mean then?
* you've got a large hole where the AC radiator used to sit so air is going to find its way through that gap instead of through your radiator. yes your car might not over heat but its not as efficient as it could be
* obviously you've got reduced air flow cause of the intercooler. might want to see if you could re-route some cooler air from the front to the radiator or even to the air intake. Every degree counts.
* Your turbo is unshielded so i'ts going to be producing alot of heat which is going to be soaking into surrounding components (block and radiator)
Its small things like this that make it alot better. Might be marginal buts always an improvement.
yeah i see ur points and it does make sense, might be something i will look at down the track
is it worthwhile worrying about an oil cooler?
the oil going around the turbo is that to cool the turbo or just lube itQuote:
Originally Posted by kraiye
because some turbos dont have water cooling and some do...
for mine it's oil only so i guess a cooler is a good idea but would you worry about it on a water & oil turbo like azas?
focking long night, didnt get much done either, pods now on, intercooler piping finished, exhuast started. and im tired and annoyed had a few probs but yeah... should sort them tommorow and be able to finish the exhuast soon. then its worrying about the turbo cooling which shouldnt be hard. eh tired going to bed
An oil cooler is not really necessary for a street car unless you are frequently visiting the twisties and giving hell through there. In some cases it can be bad because it will make the oil TOO cool.
Thats why you need a thermostat on your oil cooler.
Any additional cooling you can give to a modified engine the better. there is no such thing as too cool, the oem heat exchange systems will control everything as required.
Also, as the air moving over the radiator is at the same pressure as the air flowing through the open hole where the condenser used to be (also the same pressure as the engine bay) please explain how less air will flow over your core with a "gaping" hole.
There are no ill effects of leaving this area open, except for maybe taking a small bird and subsequently grilling it on your header/manifold. And the only way you are going to get more air over your rad core is to direct it there with some sort of over engineered aluminum splitter and shroud. Waste of time on a road car. especially for the sake of a cooling difference you cannot quantify and especially when the stock honda radiator setup will do the job perfectly. If not, there are plenty of All aluminum items that may be used instead of the oem core.
Go spend some effort on cleaning your wheels or somthing instead of wasting time posting about "gaping holes" that may or may not affect your cooling...
Because its easier for the air to go through the big gap rather then through the small gaps in the radiator.
At the moment i reckon only 30 to 40 % of the air will be going through the radiator, where as if you blank the hole up the air has no where else to go apart from through the radiator. Some of it will find its way through small gaps above the radiator etc but i reckon about 95% of the air will make its way through the radiator now which is alot more then what there was originally.
Have a chat to anyone that has built a hi powered car before and who has had heat management issues. They'll tell you similiar things. Also, have a look at alot of the major drift cars. They have lots of problems with heat because the engine is doin heaps of work and most of the time there is very little air flow going through the front of the car. They really need to get on top of the air flow/heat management problems in order to make a reliable car.
EDIT: Obviously honda's don't drift but airflow is airflow and heat is heat.
like i said. wash your wheels, its a honda. honda's near to never have cooling issues, unless there is a broken part.
And drift cars have heat issues because they are always going sideways and slow and hardly ever straight ahead where maximum airflow is had. Thats why they have elaborate aluminium splitters. Also, look at the style of bodykit. you think that the big front lips and huge airdam is just style? In australia it is, but it all stemmed from grabbing air from the surrounding panels and ducting it towards the rad opening. This is the only way to ram air into the radiator and having a hole next to the radiator is not going to affect it.
go make ur own thread..
ok watever. I know nothing.
PM me if you wanna talk about it.
its good tech there, it just has nothing to do with my build specificly
Iv just completed a semester on fluid dynamics as part of my mechanical engineering course, so can correctly give you your answer.Quote:
Originally Posted by Photonic_Si
It defiantly will flow more air through the radiator core, your above theory is quite far off.

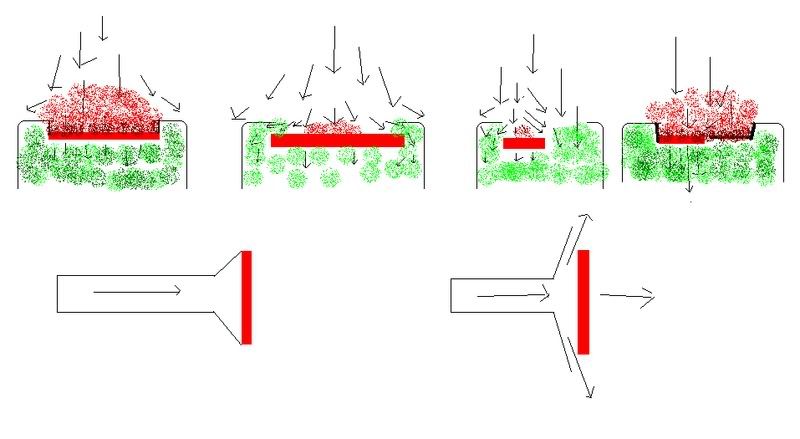

I cant be bother explaining to far into it, so I drew a pic.
The red spray is high pressure area, green spray is low pressure area. The arrows show the direction of air travel. In the 1st and last pic, the air has nowhere to go but through the radiator this big restriction means air is high pressure. Since less air is flowing into the bay, behind the radiator will be of a lower pressure. Greater differences between the 2 pressures means more air flow.
In the 3rd photo, there is a big hole where plenty of the air in front of the radiator can easily escape there will be a greatly reduced high pressure zone in front of the core. Since tons of air is flowing into the bay, it will be of a higher pressure, ie. Less air flow.
http://i106.photobucket.com/albums/m...zz1987/air.jpg
Imagine an air blower blowing air down a tube at your radiator (bottom pics) a lot more airs gunna go through the radiator that is sealed up, not just having the air blown at it.
Believe me it will, air flows the path of least resistance. If you have a half size radiator, with nothing next to it, a lot of the air directed toward the core just goes around it. Putting a simple block off plate will raise the air pressure on the front side of the radiator and lower the air pressure behind it, causing more flow through the core. Every bit of resistance for the air going around the core will increase the air through the core.Quote:
Originally Posted by Photonic_Si
Not true, ive seen plenty of turbo honda projects where the stock cooling system needed upgrading. If you look at the stock EK1 radiator, its slightly bigger than an A4 sheet of paper and about 1cm thick. Getting more air through the core would be the best way to increase the cooling capacity without going to a larger system. remember, more power = more heat energy = more cooling needed.Quote:
Originally Posted by Photonic_Si
You cant ram the core with air if it can easily go around it instead.Quote:
Originally Posted by Photonic_Si
Think of it this way, say you had an air duct at the front of your car in a high pressure zone to feed the engines air box with. Having big gaps around the radiator would be like drilling big holes in your high pressure intake tube. The air is no longer forced into the box, you’ve lost the pressure, it can escape into a low pressue zone instead of being forced to the engine.
You could go out and buy an aftermarket radiator, but all it takes is some thin sheet aluminium ($10) and a little thinking (hardly over engineering), and you could easily fab up something that looks nice and adds quite a lot of resistance to the air trying to escape around the radiator through the hole left from the condenser. It would be easy to increase the flow through the stock radiator by 10-70% depending on how far you went to block off any areas.Quote:
Originally Posted by Photonic_Si
Hey mate its all coming along now, looks sweet. Im chasing a D16 if your interested in selling the old one send me a pm. cheers josh
