Planning to make some led interior and exterior lighting linked to the dome light wiring. possibly puddle lights etc that turn on under the door handles when you hit the unlock button.
Something like this pic
http://cdn.cbsi.com.au/story_media/3...bmw-320i_7.jpg
Has anyone done this?
any chance you could tell me how much they are? Ive always wanted one :)Quote:
Originally Posted by fitme
^ will let you know.....
you mean the courtesy light?..yeah FD has an oem kit for this...but not under the handle..its under the door panelQuote:
possibly puddle lights etc that turn on under the door handles when you hit the unlock button.
is it hard to install the courtesy lights? i assume u could just be a cheapo and stick led strips underneath =P and wire it to the fuse for when the door opens?
Yeh that's how i'd do it. Or at least drill a hole in the handle and put a 1W T10 in it
obtw guys, u can buy pedals from a company called strutking. It's where i got mine from
blackgen...this is what i found at 8thgen...

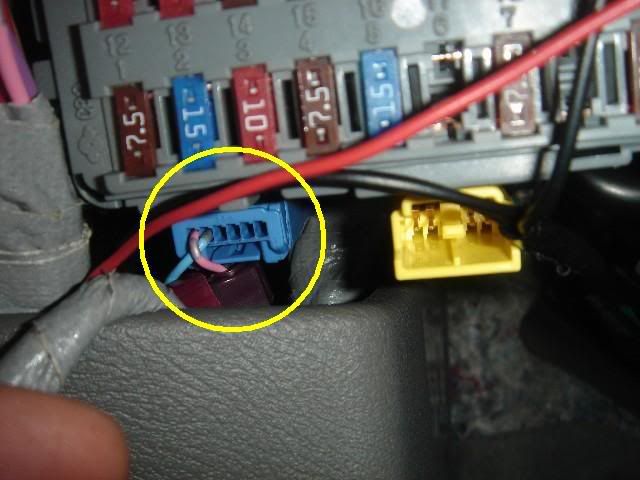

http://i60.photobucket.com/albums/h2...6052009263.jpg
There are only 2 harness present on the BLUE connector below Fuses 1 to 4
Pin#17 (Light Blue) Fuse#22 - connect your (+) supply here
Pin#18 (Pink) Interior Light Control - connect your (-) supply here
Courtesy lights are definitely doable - but would mean taking the door cards off i think.
If i had it my way when you unlock the doors, the tail lights, courtesy lights, DRL's and door lights would come on. When you turn the engine on, they would all turn off, except the DRLs and the tail lights.
That's a big few jobs though.
1. Running DRLs (Can be done from running trigger wires from the radio power wire or accessories, and from the courtesy lights, and a relay to switch between them both.
2.Tail lights run from the same circuit as the DRL's
3. Courtesy lights off the door light trigger wire.
I think it would be worth it though - definitely at night!
Got a quote from my Honda dealer today on mud guards. They're $130. Also got a quote on a set of engine mounts $942 + $60 for screws and bolts...
^ is that $130 for 4 mudguards?..body colored?
Yes $130 for 4. $65 for front pair and $65 for rear pair. Not sure about colour though. i'm pretty sure they're only the standard black colour... I didn't ask about colour. I'm only after plain black anyway
ouch 1k for engine mounts.Quote:
Originally Posted by aero
yeah.. and it doesnt even include the cost of labour. ill just have to book it into a garage to have a thorough look as to which specific mount/s need replacing, so i dont have to spend as much. im sure i wont need all of them to be replaced.
