AUDM B16A2 Swap Progress

Disclaimer: The following is provided as a GUIDE ONLY, and neither myself nor Ozhonda take any responsibility for the outcomes of someone else doing the following. You follow these steps at your own risk!

PART 1

Since we r unable to get our hand on a JDM EG6 halfcut, my mate have decided to forget bout the additional 10hp and go for the AUDM vtir halfcut instead. The swap is still far from done but we have decided to document it as we go along.

http://www.ozhonda.com/gallery/data/...ld_engine1.JPG

The A/T D16Y4 still in my mate's CXI

http://www.ozhonda.com/gallery/data/2/1271b16pic2.JPG

B16A2 out from a wreck VTIR

http://www.ozhonda.com/gallery/data/2/1271miscStuff.JPG

Miscellenous stuffs, i.e pedals assembly need for conversion from auto to manual, shafts, radiator, shift linkage etc, etc...

http://www.ozhonda.com/gallery/data/2/1271looms.JPG

The VTIR looms, theres more but tats about all we need for the swap.

First and foremost, we stripped the whole interior, so as to swap the vtir loom in.

http://www.ozhonda.com/gallery/data/...ippeddash0.JPG

http://www.ozhonda.com/gallery/data/...ippeddash1.JPG

http://www.ozhonda.com/gallery/data/...ippeddash2.JPG

The vti loom is more or less in placed now, but there is a problem, we cant seems to find the connector to the ceiling light now. we have labeled every connector but the vtir loom seems to be missing that connector. we decided to leave this till a later stage and begin stripping the engine bay first.

That is all for now. more to come.

Wynode edit: Fixed up images + disclaimer

Looking good.......glad to see someone documenting this......you efforts will pay off!

Yeah, I wish I'd taken photos and stuff when my swap was done

PART 2

Today, we took out the air-con compressor, radiator. Unplug all obstructing hoses, i.e fuel return, heater hose etc. etc. and getting ready to get the axle out.

http://www.ozhonda.com/gallery/data/2/1271enginebay.JPG

http://www.ozhonda.com/gallery/data/2/1271axlenut.JPG

The axle nut is really a bitch to get out. we try all available ways.. breaker bar, hitting with hammer.. We even get air impact tool from Bunnings and still it wont move single bit.

therefore we decided to remove the entire rotor instead and pull it out together with the axle shalf.

http://www.ozhonda.com/gallery/data/...ntrol_arm1.JPG

Remove the cotter pin before removing the nut at the control arm. We have some drama trying to remove the ball joint at the control arm but was promptly resolved by some yank's ghetto method... we have a good laugh over it. Method used

http://www.ozhonda.com/gallery/data/2/1271tie_rod.JPG

same goes for the tie rod, remove the cotter pin then remove the nut. Again, we have problem trying to remove the ball joint. the method as used above cant be used here. we rush to k-mart to get the tie rod separator but it was already too late to use it in conjuction with hammer..

we decided to proceed under the car, to remove those nuts holding on to the transmission cable. and hopefully we can get the ball joint out tmr.

For the axle nut.......weq suggested a realy good way.

Use a breaker bar and hold it firm agains the ground, start the car up, put it in first, and let the clutch out kind of quickly!......Basically you're using the torque of the engine to turn thet nut (haven't tried it myself, but he said it worked).

As for the ball joint........thanks for that link, it finally makes sense now!

Keep the updates coming :)

i know this is out of topic, but may i know how much you spent on the half cut vti-r ??heaps thx

nice work.

excelent!! keep it going!!

Good work stan! You forgot to give me a call to come round n help!!

Didn't know you started yet, gimme a call

thanks for dropping by today, james.. wasnt feeling well today.. fever and a bad cough.. so no work done today.. :(

very nice job!!!

hurry stan n kah hong!! finish it upp!! cant wait to take a ride in dat car dude, ahaha, i'll drop by next week to see wat i can help, but obviously both of u wouldnt let me touch anythingg :D

awsome thread. u guys are dedicated with this conversion! not many ppl would strip the interior :)

nice work !
It is good to see a mini writeup on engine swaps.
I did one for my B18 in to the EK4 but luckily for me is was like swaping out a B16A for another B16A. Nothing too exciting.

Tonite i did a mini photoshoot with changing recaros and rails into a civic.

A quick introduction before i start on anything. First of all, I am the owner of the EK1 and i am not new to OZHonda, been reading you guys' posts everyday but chose not to reply as i am relatively a newbie with cars and i dun wanna mess up any threads :p . I would like to emphasise that most of the conversion work is done by DCLXVI and i am more like a spectator :p . Anyway, Thanks for the awesome and encouraging feedback! Appreciate them!

Fine weather today, and with my flu gone, we got up early and proceed to remove the engine.

First, I removed the entire cat back, so as to make way for the sub-frame (we intend to take out the sub frame and replace it with the vtir's becoz it has sway bar :D ). Then we removed both the lower engine mounts.

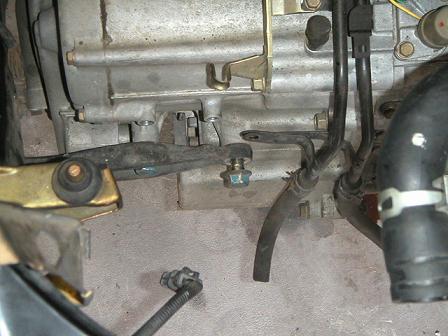

http://www.ozhonda.com/gallery/data/...gine_mount.JPG

we then lowered the car until the engine is resting on the home-made engine trolley. Note: we r not using hoist to remove the engine, instead we r takin the engine out from the bottom. With the engine resting on the trolley, we proceed to remove both the upper left, right and rear engine mounts.

http://www.ozhonda.com/gallery/data/...gine_mount.JPG

we then raised the car high enough for the engine to be pull out by the side. Meanwhile, check if any hoses or cables r in the way.

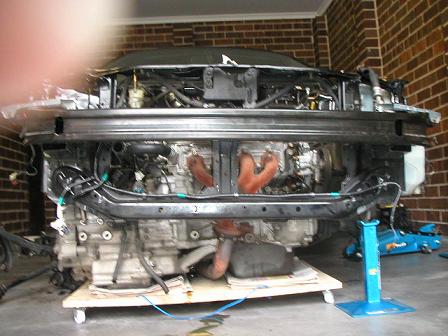

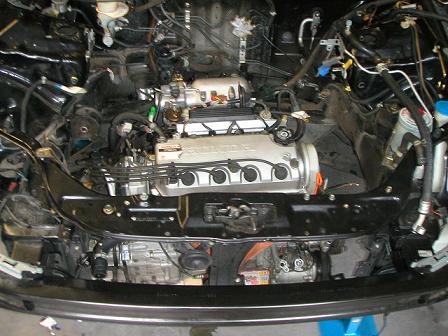

http://www.ozhonda.com/gallery/data/...gine_out_2.JPG

http://www.ozhonda.com/gallery/data/...gine_out_1.JPG

taaadaaaa.. engine finally pulled out.

http://www.ozhonda.com/gallery/data/...engine_bay.JPG

with the engine out, we proceed to remove the sub-frame. First, remove the nut on the steering rod from inside the car and detached it. Then i took out 4 of the 5 bolts from each side of the sub-frame. then lower the car till the sub-frame is resting on the trolley. Remove the final bolt from each side and raise the car up enough to pull it out.

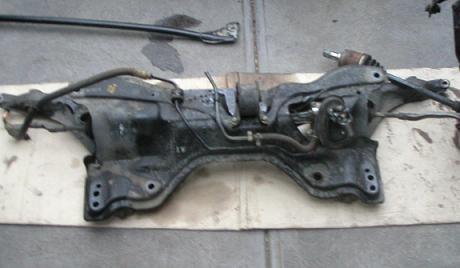

heres the old subframe..
http://www.ozhonda.com/gallery/data/...d_subframe.JPG

puttin the new subframe in the reverse order.

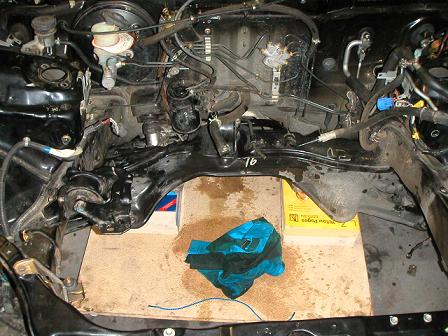

the new subframe with swaybar...
http://www.ozhonda.com/gallery/data/...w_subframe.JPG

thats all for today, gonna put the b16a2 in tomorrow.. hope everything goes well and fires up with a turn of the key... heehee :wave:

good work guys!! was really nice reading all the steps you 2 took to get the conversion done!

Top stuff stan!

Offers still there if you need any help, im not doing anything tommorow (today) so if you need a hand, gimme a buzz..

Keep up the good work!

Ok guys, the swap is complete and my hybrid VtiR is up and running. Took us a week plus to get everything sorted (including DCLXVI getting sick and had to rest for a day). It didnt take long as all the necessary parts are available (special thanks to George Whinns at Imlachs).

Never encountered any major dramas throughout the process. The biggest two problems were replacing the auto cable with the manual shift linkage and the car would only crank and wouldnt start when we first tried starting it. We had to ask help from James (SIR JDM) and he in turn had to ask one of his friend, Ary (hope i got it right), to come on down to help but the engine just wont start. THANKS to JAMES AND ARY *bow*. In the end, i called George from imlachs and he sorted everything out. DCLXVI's thread shld explain how the problem was solved.

Anyway, i would like to thank DCLXVI mainly for doing the swap as well as Damien (a mate), James and his friend, Ary for their support throughout the process. Many Thanks guys.:thumbsup:

Great work...I just saw some new pics in the gallery......so I shall wait for DCLXVI's post!

No problem Hong, just wish coulda been more help. Tried everything... except the ignition cable >_< oh well ..heheh btw its Arie (not Ary :P) and turbo drivers dont understand or appreciate VTEC, he just wanted to see a b16 (dont know why when i have one?) but yea, was in the area... Glad to see everything seems to be ok..

I would really like to congradulate Stan (DCLXVI) on his terrific effort on this project. His first attempt at anything major like this and pulled it off very nicely and did it as a favour to his good friend. Top work again Stan...very acknowledged effort!

The swap is finally complete, sorry for the lack of pictures as we were just too excited to remember taking them. :D

Installation

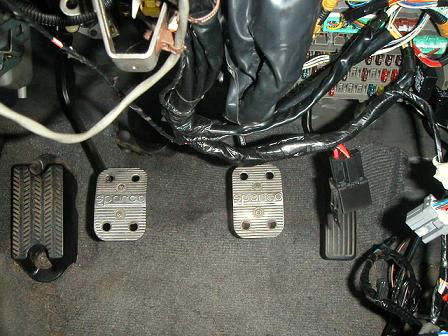

we started off the installation by installing the clutch pedal. Manuals/autos civics shared the same chassis. therefore, putting in the clutch pedal does not requires any modification, just pop the grommet and bolts in the clutch assembly.

http://www.ozhonda.com/gallery/data/...utch_pedal.jpg

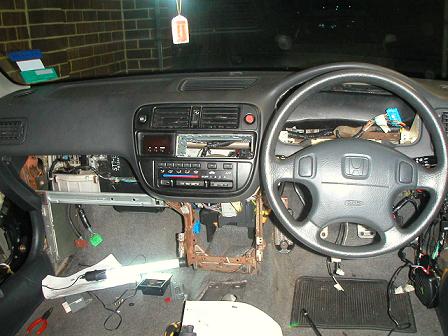

we checked and make sure that all harnesses are in placed before putting in the dash.

http://www.ozhonda.com/gallery/data/2/1271dash_in.jpg

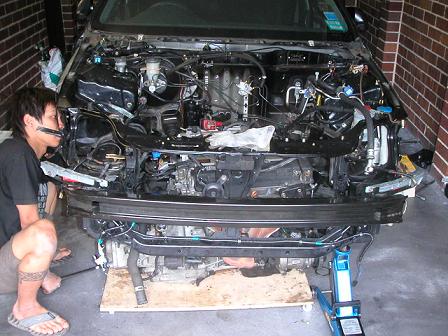

Next jacks up the car high enough for the engine to get in by the side. Then slowly push the engine in.

http://www.ozhonda.com/gallery/data/...the_engine.JPG

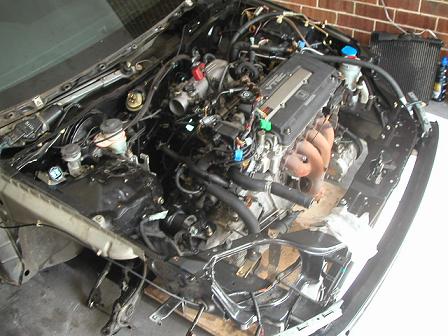

Align the engine properly in the engine bay. Once in position, slowly bring the car down, be sure to have someone checkin to see if anything is in the way. Be extra careful of the p/s motor, a/c compressor and the rear engine mount bracket.

Once the car is low enough and the rear engine mount bracket is in line with the rear engine mount in the sub frame, bolted it up.

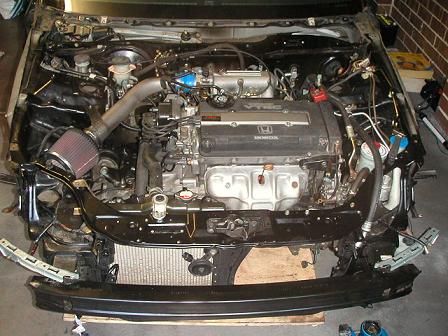

http://www.ozhonda.com/gallery/data/...ign_engine.jpg

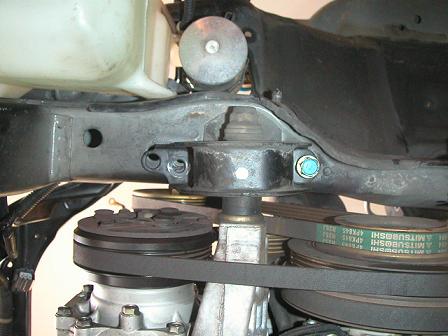

Bolts in all the upper engine mount but do not tighten them yet. Bolts in all the lower engine mount, if you have difficulty doing so, align the engine till you are able to do so, then torqued them appropriately. Now you can torque the upper engine mounts.

http://www.ozhonda.com/gallery/data/...ut_trolley.jpg

Its now safe to jack the car up and pull out the trolley.

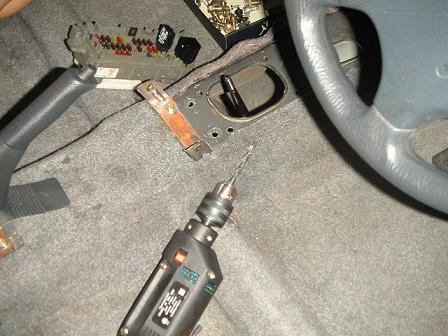

Now get under the car and install the shift linkage. Its rather hard to get the shift linkage pin in. Its not easy to maneuver under the car let alone hitting the pin in with a punch driver and a hammer. anyway we have a problem here, there are no existing nuts welded to the chassis to cater for the shifter like manual cars do. we have to drill 2 holes to fit the bolts from the shifter.

http://www.ozhonda.com/gallery/data/...or_shifter.JPG

and since im still under the car, we proceeded to install the cat back as well. its pretty straight forward, so there will be no pic on it.. (running out of image quota).

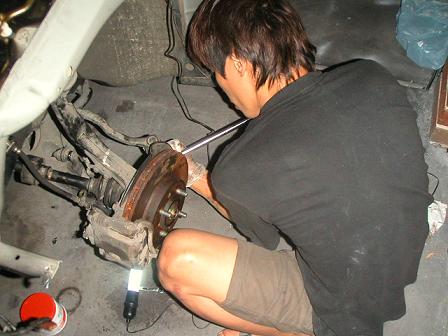

next we popped both the axle in, put in the bigger rotor and put torque the axle nut.

http://www.ozhonda.com/gallery/data/...stallation.JPG

Afterwhich, we filled in all the fluids we've drained, i.e, engine oil, transmission oil, coolant. Then we bleed the brakes and the clutch.

As we happily put in the key and hoping to hear the engine roar after turning the key, the car just go crankin and cranking but just wont start... we panic and started askin around.. SirJDM and his mate came over, we checked the fuel and spark, everything seems fine. we even check the dizzy and timing belt... they look fine too..

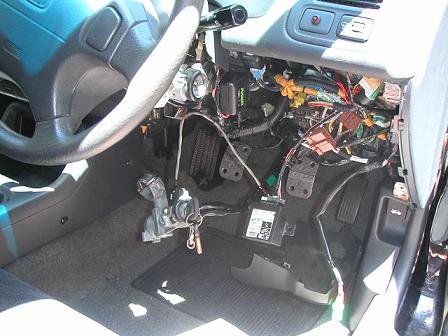

we called george from imlach the next morning and he told us that new generation ecu works hand in hand with the factory key immobiliser. we will have to use the ignition from the vtir cut in order for the engine to start.

http://www.ozhonda.com/gallery/data/2/1271ignition.JPG

i was in doubt when informed of that but guess what.. hes right... the car starts.. :thumbsup:

Job done.. the longest 1 and a half weeks of my life..

Difficulty = 6/10
Hardwork = 10/10
Moment the engine roars = priceless

Many thanks to james, arie and mates not from this forum ... and my understandin girlfriend (countless hours in garage) and not forgetting hong (owner of car) for taking the risk and fundin this project.

wow... great job... O_O but all these sound so confusing to me x_x but ahnwyay a very respectable job well done!

well done!!! some more pics of the car would be nice!!

confusing perhaps its because of the lack of pictures and some step by step instructions. :( the whole swap thing got us excited, therefore we didnt take enough pictures and writing down notes as we go along..

will do so after givin the car a thorough wash inside out..

nicely executed stan!! gud job! test drove the car yesterday, boy sure it was nice to hear the vtec sound :thumbsup: !! ok stan, next is to do swap for your own car dude, cant wait to see that too:wave:

Nice work guys. If only I had enough $$ to do the same thing.

Much respect on all the hard work :thumbsup:

confusing also maybe cuz my lack of knowledge :D but anwyay can't wait till you do a DIY artickle thingie for your car too :D

Awewsome work DCLXVI.......and thanks for taking the time out to take photos!

yeah nice writeup. plenty involved and plenty executed.

great job guys, to do all that in that short time is awesome. the part about conversions that only the person doing it will understand is the feeling of " ive just pulled a perfectly good car to bits and i hope i can get it all back together and running properly"


maybe i should do a write up of my h22a swap, ive got pics but just not enough time to do it.


anyone here reckon i should?

yes.. of coz u shld... :D

ok. sometime in the next month i'll do it kk.

hey DCLXVI can i ask u a quick question??
how high did u have to jack the car up to fit the motor under the car??

i will be starting this conversion into my teg in the next couple of days...
ive never done anything like this before :/
doesnt look as hard as i thought it would be but i guess ill find out soon enough hehe

hmm.. i'm not sure, but i placed my engine beside the chassis and i jack it up just high enough for the engine to fit in.

its not really that hard if you have everything in hand.. however its very tedious. you will need many helping hands..

so the jack u used isnt some special "ultra high lift" jack..??

he was using normal jacks, bought in kmart for $64 (too detail huh stan) lol, btw i think i still have some shares in those jacks..lol

The normal jacks we used were not high enough so we place the jacks on thick yellow pages phone books before we start jacking the car up. heh. not a brilliant idea but it works wonders.

very very nice job.
:)
