hey guys
just got a question for those that are using type R/spoon shift linkages
how hard is it to install the linkages and how long does it take
i tried 2 ask the ppl at honda service and they wouldnt give me a straight answer, meaning they dunno
im sure theres somone here who has the type R linkage
wondering how they did it
to get the old linkage out and the new one in it requires some brute force and patience. It is not a simple unbolt and re-attach job.
having said that, you obviously need a hoist and the right tools (ie a hammer hahaha). while you're at it, may as well change the shift linkage bushings as well... they also a bitch if you don't know what you doing...on the b series the bushing which looks like a bowtie is a pain.
ive got the ek9 complete shift linakge with bushings
i dont plan to do it myself at all as i dont have the tools or knowledge
i was gonna take it to honda to so it as i got a $100 dollar voucher to use on a service
they say they charge $100 per hour for labour
but they cant tell me how long this is gonna take
surely it wont take qualified honda technicians over an hour to change the shift linkage?
did one on the weekend
took me half an hour jacked up on the floor, piece of cake :)
yeah, it aint a big job if you have the right tools. 1/2 - 1 hour
yeah took about half an hour to do it.. the hardest part is getting the old pin out and getting the new one in wasnt any better.
But yeah is VER"Y easy, u just need the usual sockets and a hammer and perhaps a punch-driver thinghy.
you'll be sooooo happy when you finish the install is soooo much better !!
i spose the ppl at honda should do it in no longer than half an hour then
$200 an hour is FKN expensive !! I'd try a different HONDA Dealership..
it SHOULD only take a Dealer 30 mins to install it, but man I dont trust some of them.
just take it to a menchanic to do it cheaper ill say honda dealers they sumtimes take 1/2 hr and sumtimes more depends in the persons whos doing it
It will take u 1/2 hour...
but would take a honda service mechanic 2 hours..
freakin they take forever ****witin around
And one more thing what the difference in the shift linkages?? didnt know there was a difference... is it lighter or somthing?
shorter throw in diff gears i think, i mean stiffer feel in gearsQuote:
Originally Posted by BlitZ
isnt the stiffness caused by the bushing at the end of the linkage...
or is the linkage designed differently.. never really seen one..
OT -hehehe heard your getting climate control dude! you didnt get the one with the large LCD screen did you?
The hardest part is getting that damn spring clip out (first pic). Could you take half an hour if you don't have the right tool!
This thread on installing a short shifter might help ya Angie :D
http://www.ozhonda.com/gallery/data/2/3IMG_4977-med.jpg

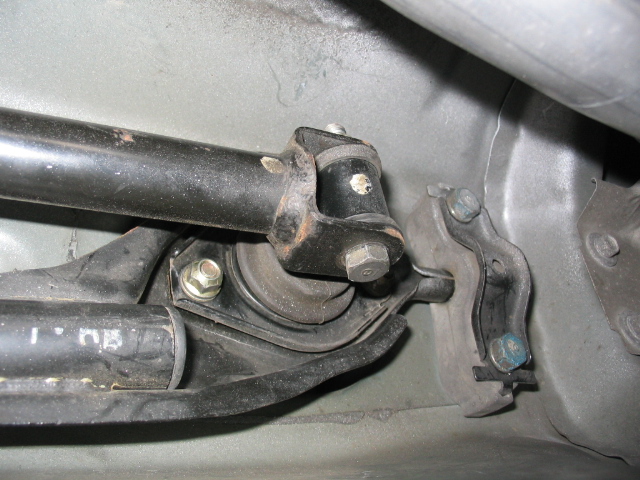

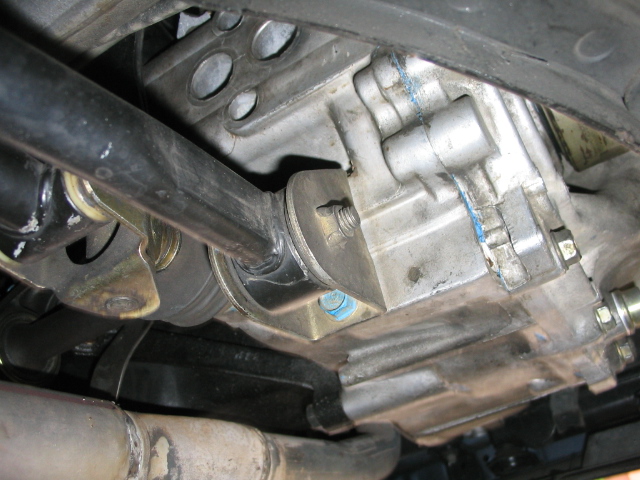

And a few more pics for ya!
http://www.ozhonda.com/gallery/data/2/3IMG_5627.jpg
http://www.ozhonda.com/gallery/data/2/3IMG_5628.jpg
I think this was discussed a bit before and from what I recall the spoon item is a reinforced ITR linkage to make it stiffer.Quote:
Originally Posted by BlitZ
Just changing your bushes should give you an improved feel!
dont knock Honda techs.Quote:
Originally Posted by BlitZ
:)
ehheeheh its not that.... ahaha ahahah they know exactly what they are doing.. they jsut love to take their time..Quote:
Originally Posted by ECU-MAN
And they also like to queue you up and make u wait..
All this is ot ejheheh
you dont need much tools.. just a socket set and a few shifters...
Oh and spring pin pointy device.,... ( i used a blunt nail)
thanx 4 the reponses guys
ill prob end up takign it to honda
use up my voucher
from what i know the linkage will give me a short throw as well as the 'precise feel' that u get form R cars
where did u hear this from??? ehheh nah men i didntQuote:
Originally Posted by BlitZ
Doing the linkage change is a piece of cake and shouldn't take you more than 30mins-1hr.
Only difference I could see between the type-r linkage and my oem vti-r version was that the locating point for the base of the shifter was wider on the type-r linkage (so you can't fit a type-r shifter like my C's shifter onto and OEM aussie linkage because the Aus linkage is too narrow).
I don't know if it is lighter but everything else seems identical when comparing the OEM Australian Vti-R linkage and the type-r linkage.
I still have a little play in my shifter after the c's shifter and type-r linkage but I think that is caused by the rubber bushings in the linkage.
Good luck.
makes the shift throw and feel IDENTICAL to driving a type R.Quote:
Originally Posted by BlitZ
There arent that many here that has experienced the type r shifter throw in a civic .....
Thats a very hard call isnt it..
An integra will be different.....
eg. The shifter throw in a del sol crx is different to a civic vtir cause its a different car..
The length of throw is in respect to how low the stick sits .. unless the type are one is lower it would be the same distance...
i have an ek9r shifter in my ek4
feels good
Well I have B16A in my EG5 and having driven Type R's before and after installing the linkages, to me it feels IDENTICAL to SHIFTING in a DC2-R.Quote:
Originally Posted by BlitZ
I am refering to shift feel, gear-throw length and directness. I was nothing short of amazed at the improvement.. and as I said, to me it made the shift IDENTICAL to a DC2-R. Everyone that has driven my car since and felt the shift would sure agree. Leo has got a standing order over here for about 3 sets of linkages HAHAH
okQuote:
Originally Posted by BlitZ
just took the whole linkage to dealer to ask them personally how long it will tkae to install
and guess wot they said
MINIMUM 1.5 hrs!
now
is there something wrong here when ppl are ssaying it takes 30 mins to install
im talking about the complete linkage not just the short shifter
anyway
i say screw honda
is there anyone out there that has done it themselves or someplace they know?
if you did it urself
ill pay 4 ur labour
any takers?
yeah, but dealers want money out of you. It is a half hour installation, but they will say min 1.5 so they can charge you 2 hours. Doubt they would bother doing it if they were only getting paid for half a hour of work
I can do the whole linkage in 10 min
short shifter in half an hour.
takes me more time to Jack the car up.
Quote:
Originally Posted by gelo
ur just a freak John
are u in sydneyQuote:
Originally Posted by ECU-MAN
u wanna help a brother out?
ill pay ya
would if I couldQuote:
Originally Posted by gelo
but im in SA :)
just a tip, use wd40 on the pin it will help it slide out with less friction
hey guys
just got my type R linkage installed this arvo
props to andrew (vti-r civic) for helping me out
now somethign has been bugging the both of us
when we removed the stock ek4 linkage out
we found that the round bushes where missing
for those that don't understand, check out the shift linkage bush kit spoon has
it consists of a bracket bush and 2 round bushes
my two round ones are missing
according to andrew his was there when he removed them
rang up honda wanting to buy new ones
and they said they dont have them, as in they dont sell them
whats going on!
[img]http://www.spoon.jp/jp/products/imag...eup/608_01.jpg[/img]
If you are referring to this pic gelo, the two circular rubbers are for the front shift rod if I recall.
Guys, the bushings/rubbers in question mount at the top of the pivot at the rear of the shift rod (between the body and rectangular pivot in the pic above). I figure it is a damper for vibaration. Can anyone shed some light here?
i think you are rightQuote:
Originally Posted by VTi-R Civic
because i get this slight metal vibrating noise when i drive
i was wondering wot the hell it was
it takes at least 15minutes to take out...putting back in should be another 15 minutes...unless they slackers :D
Did you read the last few posts? :DQuote:
Originally Posted by rosso
gelo, if it isn't possible to get OEM ones it wouldn't be too hard to substitute something - they are just a basic rubber insulator/bush. Main thing would be to not go too thick. I can see if I can find something on the weekend and let you know if you want. :)
