Hi everyone,
I just put a set of coilovers on my 04 euro lux. front with 60mm & rear with 40 mm lower. Only notice last night that my HID (low beam) doesnt light up the distance as used to be. I thought they are auto leveling, but it seems very hard to drive at night now because the low beam just heading the ground.
Can they adjust manually?
Thanks
Quote:
Originally Posted by flypig
I lowered my o6 and it snapped an arm to a sensor on the passenger side front. If you look at the front side of the wheel and check at the bottom of the shocker It should be connected to the shocker and run to the body of the car. it is about 15cm long and i think it controls the level of the lights. i haven't fixed mine as its not covered by warranty even thought he car was 4 weeks old. :( due to being lowered. But im pretty sure it is the control for the lights. See how you go hope it helps. But my lights have been all good. I took the arm completely off it was making a ticking noise over bumps.
:thumbsup:
I am pretty sure u can adjust the lights manually by using the screws which are located in the engine bay. Just drive the car back a bit from a wall and mark out an aiming marker with some tape... Distance of the markers should be in te Euro handbook as it is a regualr maintainance thing
"walks off to look for handbook"
note that the height of the beam is relative to the height of the headlight(i.e. aiming standards for hid lights basically say that you measure the height of the headlight, then aim them a certain amount below that), so when you lower the car, you are going to lose some distance in the amount of illumination your lights are capable of maintaining.
Quote:
Originally Posted by Spec83
I think you are correct. The only thing is if they are auto adjust there has to be something that has caused the lights to dip excessively.
I just checked the Euro manual book - page 131. It says that cars with HID is equipped with an Automatic Headlight Adjusting system that senses changes in the vehicle posture due to riding and loading conditions of the passangers & their luggage and adjusts the verticle angle of the headlights (low beam) auotmatically.
Can anyone sure about that little sensor was bolt on the bottom of the passengers side of the shock was the actual sensor for the HID?
Thanks
most hid autoleveling systems use a sensor at all 4 corners, or at least front and back, to determine how the car is sitting relative to the ground, for accomidating for not only load, but inclines and declines in the road, etc
Quote:
Originally Posted by saxman
There is 2 sensors one at the front and one at the back.
Checked the workshop manual and they are located on the left front and rear suspension assemblies between bottom wishbones and the body by the looks of it...
Had a look under the bonnet and on the top of each light right next to the 1/4 pannels there is a covered hole which has U-->D... take the cover off and you should still be able to adjust it manually using a screwdriver and a target board. You lights just wont dip when loaded which can still be a problem??
PDF of aiming procedure (this is american ours will be opposite)
The only question i raise is.Quote:
Originally Posted by Spec83
If it is lowered now and the light has adjusted. Could you do any damage to the adjuster as the light adjustment has moved to compensate for the lowering??
Just a question.:o
I dont think so - the adjuster would have an inbuilt feedback loop so the motors knew where they were relative to the road position and the travel left in the adjustment range. They also have to stop adjusting at a point lol :)
Adjusting it in theory should just decrease the range in which the lights aim up when going down hill (this is assuming that the lights are now pointing more toward the road since the viewable distance has decreased)
On a related note - I was looking at getting some tein ss coilovers and noticed that the jap catalogue states that all tein coilovers are not for auto adjustment lighting... can anyone prove or disprove this?? Do they not have sensor mounting points??
I check the engine bay today, there's no Up-Down adjuster for the HID?

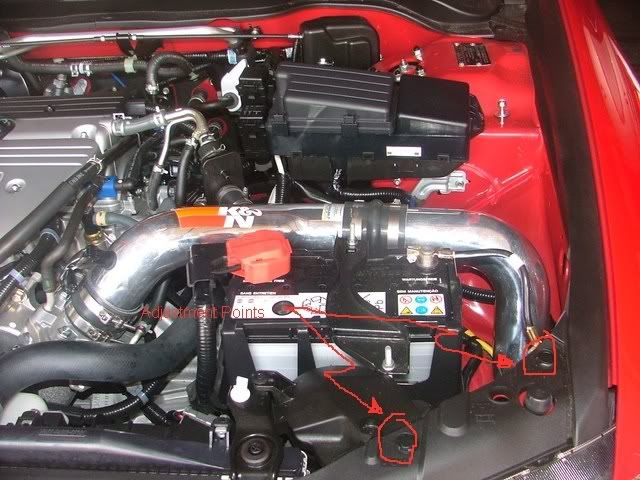

There is - i have HID euro and its on mine... You just have to pop the covers off there is U-->D text inscribed on the top of the healight cover (black plastic)
http://i48.photobucket.com/albums/f2...scf3527vn0.jpg
Props to Sports06 for the piccy :)
Did you pop up the covers before? There is nothing under the cover. May be ithey used the same plastic cover as Euro Standard (with halogen lights).
Hi,Quote:
Originally Posted by Spec83
Just wondering whether anyone has the answer for the above? I to am looking at getting coliovers but after reading this, I'm having second thoughts.
Cheers
there's no sensor mounting point for most of coilovers. Unless you make your own bracket. What I did to mine was the sensor connect to like a swing rod & just tie it up to the highest point (adjust with HID on).
I lowerd mine approx. 55mm at front & 45mm at back. But now seems fine when driving at night.
Thanks boys
I'll have to take a look under there
I have fitted Tein SS-P Coilovers with EDFC controller to my 05 Euro Luxury with HIDs. There was a ring that slipped around the original shock that mounted to a sensor via a connecting rod. I assumed this was for ESP/Traction Control system, but may be headlight leveling related. I simply took this ring off the original shock using a screw driver and hammer and tapping it loose, and slipped it over the Tein shock. No dramas so far with ESP/TC system - but obviously me looking in this thread would indicate I still want to adjust my beams manually! hahahaha
How do you manually adjust the HIDs? my left one is about 1-2cm higher then the right when about 3m away from the wall I can't stand it!Quote:
Originally Posted by JetLee
yeah i adjusted mine manually. just need a philips screwdriver down the hole in the level part
It is meant to be like that so you don't blind oncoming traffic on the right side. Do not increase the height of the right-side beam.Quote:
Originally Posted by viper8548
Glad to know its not a defect :) thanks aaronQuote:
Originally Posted by aaronng
ROFL, that is standard in most cars that kink in the headlights.
Guys,
Anyone know with bilsteins, and eibach camber kit,
1.do you need to disconncect the HId levelers ??
2.can you leave connected and use existing mount,
3.do you need to simply cable tie.
It just bilstien now only come for non xenon application.
thanks
Take the front lever mounting ring off the OEM shocks and put it onto the bilsteins. Leave the rear one alone
Cool no problems, ill give it a shot!!Quote:
Originally Posted by aaronng
Thanks aaronng:thumbsup:
