hey every1,
you probably know my setup by now... and i just needed feedback on this item i found on ebay????
http://cgi.ebay.com.au/Turbo-Manifold-for-92-95-Honda-Civic-with-D16-Engine_W0QQitemZ170275123845QQcmdZViewItem?hash=it em170275123845&_trksid=p3286.c0.m14&_trkparms=66%3 A2|65%3A1|39%3A1|240%3A1318[/URL]...
what are your thoughts, and any suggestions???
yes or no
NO!!!!!! U get what u pay for.
Ebay manifolds are cheap and shit, so are the kits u find on there as well. stay away
rather see u spend your money on quality
As said, you get what you pay for. I would never get it.
And the wastegate placement is very poor.
Quote:
Originally Posted by Riced_Civic
thanks buddies, then the question is where do go to get one remade at a good price???Quote:
Originally Posted by DLO01
try this for a read on manifolds, give you an idea of what is out there and a rough price range
http://www.team-integra.net/forum/di...g+Common+Topic
thanks big help:)Quote:
Originally Posted by Limbo
I've had big problems with Ram horn style manifolds. My first one was a ebay one which fell apart after 3 months. then i had a custom one made up in replica of the ebay one which lasted bit over 6 months which i repaired and then failed after another 6 months.
I then purchased one of these below and i havent had a peep out of it since i got it and its been well over a year.
http://home.comcast.net/~chamm1/turb...s/revhard2.jpg
Get a good mani and you wont regret the money spent.
its booked in to receive a new transplant. custom making one out of steam pipe for around 1200 not sure if thats good: any thoughts...
i totally agree with FastFWD :D i bought a full race manifold, Has a LIFETIME warranty and the have AWSOME customer service... AND give great gains! problem is, u MAY have to get a new turbo, and dump pipe...
Ive seen the full race manifold on another setup, same turbo different waste gate setup though...
You get what you pay for, full stop.
Full race ramhorns go for $1000 usd. Custom is always expensive as its always a 1 off/first time. Hopefully the guy doing it for you is good.Quote:
Originally Posted by myztery
What WG are you going to use? Setup?
wouldnt u rather, a TRIED and TESTED manifold then a 1 off tho? cause it might not be worth the money?
im going to use the same wastegate, i was refer by adrian at toda of the exhaust place. forgot the name though...steam pipe is a bit smaller which might get rid of a bit of lag
Quote:
Originally Posted by myztery
Mate why are you looking at junk like this? Last time i checked john ran either a genunine full race or a good quality replica on your setup. Why change?
its cracking all over the place i used steal welds but its just cracking around itQuote:
Originally Posted by Sexc86
those xspower manifolds if u want it better u can do this
obviously this isnt finished he needs to move the surports over because one is on the turbo flange lol
http://i341.photobucket.com/albums/o...g/DSCI0328.jpg
http://i341.photobucket.com/albums/o...DSCI0340-1.jpg
weld the surports onto the flange that way its stronger when it holds the turbo up.
the ugr manifold has them aswell those turbos r pretty heavy
mines been toughened up underneath on the exhaust so touch wood *touchs head* it shouldnt crack
this car build is nice as its stolen off g2ic.com
http://i341.photobucket.com/albums/o...g/DSCI0338.jpg
Quote:
Originally Posted by A-man
Nah i did this a-man when i had my crappy xspower mani 2 years ago and it doesnt help. The stainless steal is only 1.5mm thick piping and over time the vibrations and heat just tare appart the manifold even if it has support.
aw right what manifold r u using now can u post a pic?
Im using that Rev hard one. I posted a pic on the first page of this thread
heres my manifold:
http://img509.imageshack.us/img509/2...0021ch0.th.jpg
Is that xs power or another brand? looked just like my old one?Quote:
Originally Posted by VTi_b0i
Full Race yo!
yeh they look the same but the materials its made of is the only difference
do u run a/c fast fwd?
No a/c, i could probably fit it now with my new manifold setup but with the xspower one and the one after it both didnt fit the AC so i removed it. Plus it must of been about 40/50kg less and less pully of the crank so i removed everything for good. Piping everything.Quote:
Originally Posted by A-man
aw serious
thats not bad effort
what radiator r u running? with that xspower manifold? im running twin core civic rad but in summer (today with a 12 inch and 8 inch thermo it over heats a little)
what temps do u get?
nah not running the xspower mani anymore...chucked that.
im using an aftermarket Aluminium Radiator. Forgot the name brand but its about 3 times as thick as the stock one. Runs alot cooler. always under 82 degree's where the stock was like 87-89 and would creap up when i thrashed the car a bit
lol yeh true mine does the same unless u have the heater on the whole time coz then it dont move no matter what u run
mine runs around 97 degrees on aftermarket gauge on the bottom hose... the stock engine gauge reads normal temp... ive just bought the pwr one hopefully this will fix it
I check mine from my Power FC A-man, straight from the ECU :) was around 35 degree's outside today in perth and it was running 79 :) i was like woahh awesome
aw k... thats good man
ive got a radiator shop looking into making mine a bigger capacity.. im thinkin about a 2nd radiator that is part of the 1st rad its just because space is a problem....
talk about off topic...
now back to the topic, has any one tried ak motorworks ram mani???
if the manifold i bought b4 hand doesn't work out i will be using one of theres as they are doing my kit.
keep me informed on there mani please feed back would be appreciated...Quote:
Originally Posted by Riced_Civic
he prob referred you to haks at performance exhaust.Quote:
Originally Posted by myztery
he does good work.
if ur gonna go down that path of buying ebay manifolds, never buy stainless steel ones.. go for cast iron
yeah he's good he's making mine also.
Quote:
Originally Posted by iced
yeh but member to get the wastegate in the middle of the 4 runners not off on one because u will have more control of boost with the gate on 4 runners not on 1
the cast iron ones dont look that good but they seem to be the way to go
thats the oneQuote:
Originally Posted by iced
that's ture but the longer runners give less turbulance in a header. WHen hitting higher RPM makes alot of difference to the power & spooling, that's why all high power applications generally use longer runners, but you got it right about boost control , you want the wastegate to be on most of the runners to release faster.
Quote:
Originally Posted by A-man
thats hot man and good quality to
man that looks crazy. if i cant fit the cast iron mani, i might go for a custom top mount
if you've got money and want something nice, check out www.fjdistributors, they have a ramhorn style manifold.
votek, just wondering if that manifold has a/c clearance probs or did you opt for no a/c?
Link not working.Quote:
Originally Posted by SeverAMV
Voteks manifold is not AC friendly.Quote:
Originally Posted by Limbo
oh really? lol
i thought ill switch the turbo the other way around lol .. never mind
yeah i'm getting abit old, i need the comfort of a/c
No chance. Absolutly no room for down pipe between turbo and AC compressor.Quote:
Originally Posted by votek
the way you generally tell if a manifold clears is if the turbo port is close to the second exhaust port. Its gotta be at least half-way in the middle to have any chance of /ac, that's what i noticed from my manifold. Even then it's a tight squeeze
Exacery. Turbo exhaust housing (when compressor housing on drivers side) needs to be at least smack bang in the middle of 2 & 3 cylinder runners to give enough room for a down pipe to clear AC compressor.
Also you can also tell if its AC friendly if the turbo flange is on an angle to clear larger frame turbos away from the engine block webbing and bell of the gearbox.
Heres some pic's cause I am bored: :(

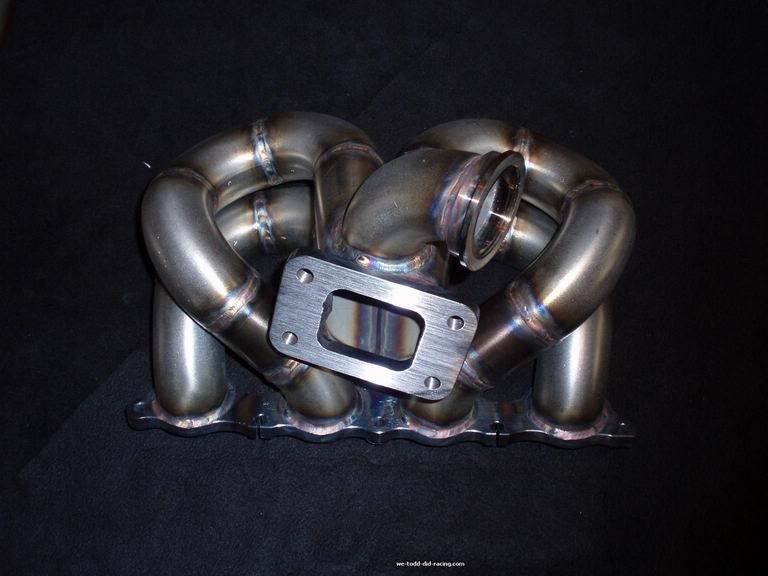

Ac friendly manifold:
http://i13.photobucket.com/albums/a2...ofRLD-Fab1.jpg
Close proximity for downpipe (3 inch). Ac compressor on right (passenger side). (photo taken from under car)
http://i13.photobucket.com/albums/a2...ofDSC01542.jpg
fark thats close nice manifold but and u can fit a 3inch dump to.... thats where mine fails mine can only fit a 2inch i think... though my turbo exhaust wheel is only 2inch but i think it should still b 3
My ram horn performed much better than my current Rev mani. It must have dropped .02 of a second on initial spool but it spooled up quicker and felt it held more power on the higher RPM. I wouldnt mind looking at a top mounted Ram horn style mani where the ram goes under not over and your turbo sits nicely along side your motor and is directly in front of you when you open the hood. Seems alot cleaner install.
Like this setup below, but a really nicely made one something that's not gonna break on me and has alot of support for the turbo so it doesn't crack over time.
http://i341.photobucket.com/albums/o...g/DSCI0328.jpg
I wonder how much a nice one would cost. I could sell my steam pipe one for a bit and get myself one of those.

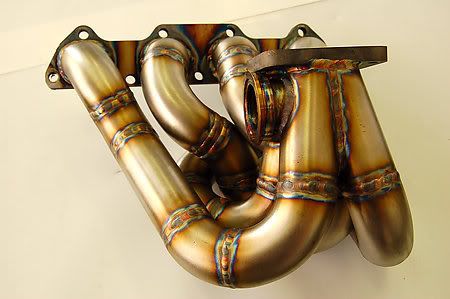

Top mount manifolds for B series:
Full Race $1199 usd
Peakboost $899 usd
AFI $1050 usd
Love Fab $1099 usd
Spoolin Performance $900 usd
None of the top makers put extra bracing on thier manifolds to support the weight. Just remember that a 'hollow pipe' is very strong. So taking that, if the material is thick enough and the welder knows what hes doing there will be no problems. Majority of those above provide full backup on thier manifolds too.
http://i13.photobucket.com/albums/a2...TFRONTVIEW.jpg
i know Full Race manifolds come with a Lifetime warranty
yes, i sooooo want a top mount now
yeh plus they r made of steam pipe that helps sooo much those china manifold like mine arent.. it depends on the steel used weather it cracks or not
if u gonna sell ur manifold fast fwd let me kno im very interested
The ones I listed above are all Stainless Steel.
yeh but there is different grades of stainless steel on the cheap manifolds they use the cheap stainless grade thats y they crack there not designed for exhaust manifolds where things like steam pipe that comes in stainless is designed for these applications
Yeh my current is steam pipe, Very Very strong and ive had no problems yet. A-man give me a month or so to think this threw cos im thinkin about getting a new turbo.. Dropping my gt28rs and getting a gt30 or gt35/40 with high mount and tune it to 22psi or something...ill think it through.
i might take ur turbo to then...
u can keep the a/c with that manifold yeh?
Yeh im pretty sure you can hey. It's got alot of space compared to my last turbo setup.Quote:
Originally Posted by A-man
http://img294.imageshack.us/img294/5990/dsc02295wg1.jpg
a/c friendly and p/s friendly.
done by sonny at powertune.
Nice mate, ceramic coated also.
I'll post mine up later as soon as Hakan finishes it.
Its just got to be all tig'ed together now & ceramic coated
Just saw it today its a neat little setup ;)
Can't wait till my new setup is done now.
Nice, may I ask how much that costed u?Quote:
Originally Posted by destrukshn
Noted these are the choice when going a big setup.
I was thinking one but opted for the standard long ram, just to keep all the dump pipe and stuff lower down for less heat, (that was my thinking) now that i think about it again i could of got the dump pipe ceramic coated also, but o well mine's like 90% done already now.
http://i341.photobucket.com/albums/o...g/DSCI0328.jpg
Yeh if get the gt30r or 35/40 ill go with a top mounted bottom ram mani and get it ceramic coated etc. your right tho, keep all the heat below
welding looks familiar LOL!!Quote:
Originally Posted by destrukshn
looks neat.
before with avo manifold and dump pipe leading into a 2.5inch exhaust system
http://img232.imageshack.us/img232/7...psi1bf7.th.jpg
after with a custom manifold and dump pipe (as shown above) leading into a 2.5 exhaust system
http://img223.imageshack.us/img223/9867/2dynopsitv1.jpg
nice Johnny :D i bet it feels alot better too
this sounds like a stupid question but....
will a bigger exhaust benefit those dyno figures? (plus nice figures)
and how much boost is that on sry
15-16psi.. yehh the 2.5inch exhaust would be restricting some power
hmmm i might b back at the exhaust shop soon :p
a 2.5inch exhaust will make more power everywhere in the power band really.
and a heap more up top.
but i will keep my 2.5inch, as i quite like it. lol.
yeah running 15psi on that run.
btw manifold is $900 from sunny at powertune.
you reckon? i was thinking of going 3" on mine when i get it redone
I've gone 3inch mandrel stainless steal and its great but on 7psi i do think its a bit to large but i think once ive pumped it up a bit to say 15psi+ it will be fine.
the avo kit running 204kw was that with the 2871r?
sure was.Quote:
Originally Posted by votek
does anyone have their turbo dyno graphs?
not til the 7th of feb ive organised a dyno day fastfwd r u coming?
Maybe start a new thread with this.Quote:
Originally Posted by votek
