Hey guys Im getting bored of my stock cluster and Ive heard of people changing there clusters on Civics can it be done with Gen2 CRXs???
Printable View
Hey guys Im getting bored of my stock cluster and Ive heard of people changing there clusters on Civics can it be done with Gen2 CRXs???
Nooo! Leave it be!
y leave it be?
I'd like to know this also. I'm guessing it can be done, but the wiring would be a bitch.
Ive got a Type R DC2 cluster in my '91 gen 2(with the round cluster hood cover),dunno whether it will fit if u got the square hood cover.Fits really well,you have to customise the side brackets a bit,but not hard with a pair of tin snips & a bit of creative bending or you could just jam the cluster in with bits of foam to hold it in place nice & tight.
http://i58.photobucket.com/albums/g2...1375_1_1_1.jpg
Wiring wasnt hard,you just need to get the plugs to go with the cluster with a little bit of wiring hanging off them,so u can cut & join the original wires on.I could give you the wiring instructions if u want.Ive also got a JDM DC2 VTiR cluster for sale if u want it,just no plugs to go with it,u would have to find someone with a DC2 dash harness spare.
hey man cheers ye ill ned wirein diagram n stuff and some instructions im sooo noob looks pimp tho ill have to but the round thing cos i got a squar one cheers for infoQuote:
Originally Posted by CRXer
lol man this is giving me ideas for my gen 2 lol
lol ye ns I cant wait to get DIYin on myn lol
I forgot to mention one other thing the DC2 cluster has an electronic speedo,so you would have to replace the cable VSS in your g/box with an electronic one.I dont know whether you can get an electronic VSS for a D series box,maybe off an EG or something,cos i got a B series g/box already.
I have put a speedo drive from a D15B7 ( eg gli ) into a B series gear box and it worked fine.
awsome work btw, looks really nice.
i dunno if ill do the cluster change..... tacho goes up2 8500 rpm myn peaks at 7000 lol damn D series
now rev that d16a to 8500
dont have a D16 anymore dude,its long since been replaced.Quote:
Originally Posted by qstoria
There you go,question answered,u can get a speedo sensor for your D series box,add that to your shopping list.Quote:
Originally Posted by ECU-MAN
Quote:
Originally Posted by CRXer
thats good to hear
awsome work CRXer looks tops
cool work.
might kinda forget u're in an EF looking at tat cluster while driving hehe.
question: when doing cluster swap. are u able to adjust odo kms reading to the actualy km travelled? or watever milage shows in the cluster will b plugged in as is?
that can be done, but its a delicate procedure.
hmmm well I use an external Tacho anyhows so im gonna go down to wreckers today and find a nice Cluster and hook it up, I saw a nice DC2 cluster there a week ago ill go get it with plugs and all can you put up wirein diagram please CRXer
Yeah could you please post up the diagram, or email to: info@aesthetiks.com.au
Cheers bud.

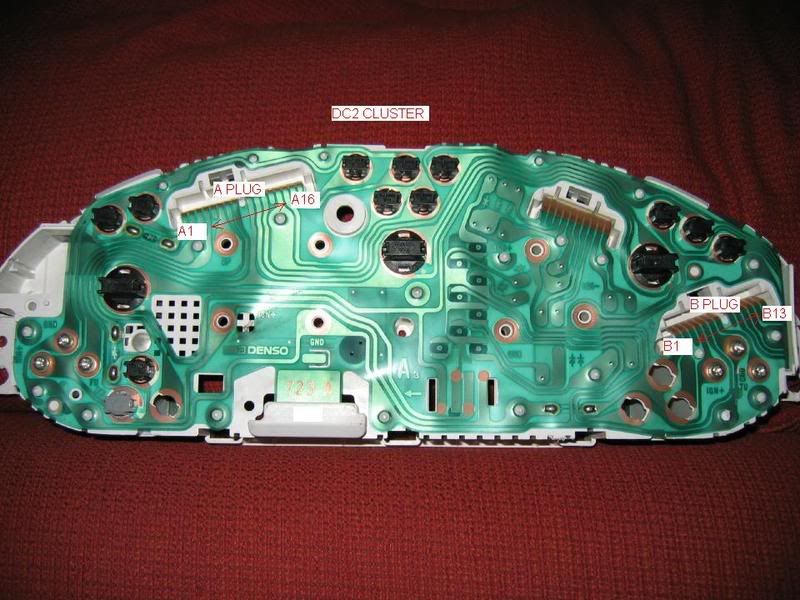

The wiring below is based on looking at the cluster from the rear & the plug on the left being the A plug,the plug on the right being the B plug for both clusters.
The numbers A1 to A16,etc reading from left to right as demonstrated in the pic below,again for both clusters.The pic being of the DC2 cluster.
NOTE:Label the CRX wires before u cut the plugs off,as there are some wires that have the same colours.
http://i58.photobucket.com/albums/g2...G_1381_1_1.jpg
DC2 Plug Wires > CRX Plug Wires
A1 red/blue > - seat belt light
A2 lt blue/red > - door open light(can be hooked up by adding wire joining to passenger door switch wire near fuse box)
A3 yel/white > A6 yel/white fuel gauge
A4 blue/white > - low fuel light
A5 -
A6 orange > A2 yel/red speedo (join new wire from VSS onto this join as well)
A7 green > A4 yel/red hatch open light
A8 blue/red > - ABS light
A9 black > B4 red dash lights (-)
A10 red/black > B5 red/black dash lights (+)
A11 black/yel > B10 black/yel battery light (+)
A12 -
A13 green/blue > B1 green/blue left indicator
A14 green/yel > A8 green/yel right indicator
A15 red/green > B2 red/blue high beam
A16 green/red > B7 green/red brake warning light
B1 -
B2 -
B3 -
B4 yel > A7 yel ignition power
B5 -
B6 black > A1 black ground
B7 yel/green > B3 yel/green temperature gauge
B8 -
B9 white/blue > B11 white/blue battery light (-)
B10 red > - cat convertor light (JDM only)
B11 yel/red > B8 yel/red oil light
B12 green/orange > B9 green/orange check engine light
B13 blue > B12 blue tacho
For new VSS wiring,
there are 3 wires
black/yellow > join to thin black/yellow wire at strut tower plugs in engine bay
black > join to grounding point on thermostat cover on engine
orange > join & feed thru firewall thru where u took the old speedo cable out of & join to cluster wiring as detailed above.
If any more info required for the installation,reply to this thread.
Top stuf man +1 rep :D
yeah awosme work +22 rep :)
WOW awesome work.
daymn thats nice as!
what colour is the back light on these things, I want red numbers n needles
The VTiR cluster is red needles & red backlight,the ITR is yellow needles & red backlight.Quote:
Originally Posted by serpo
